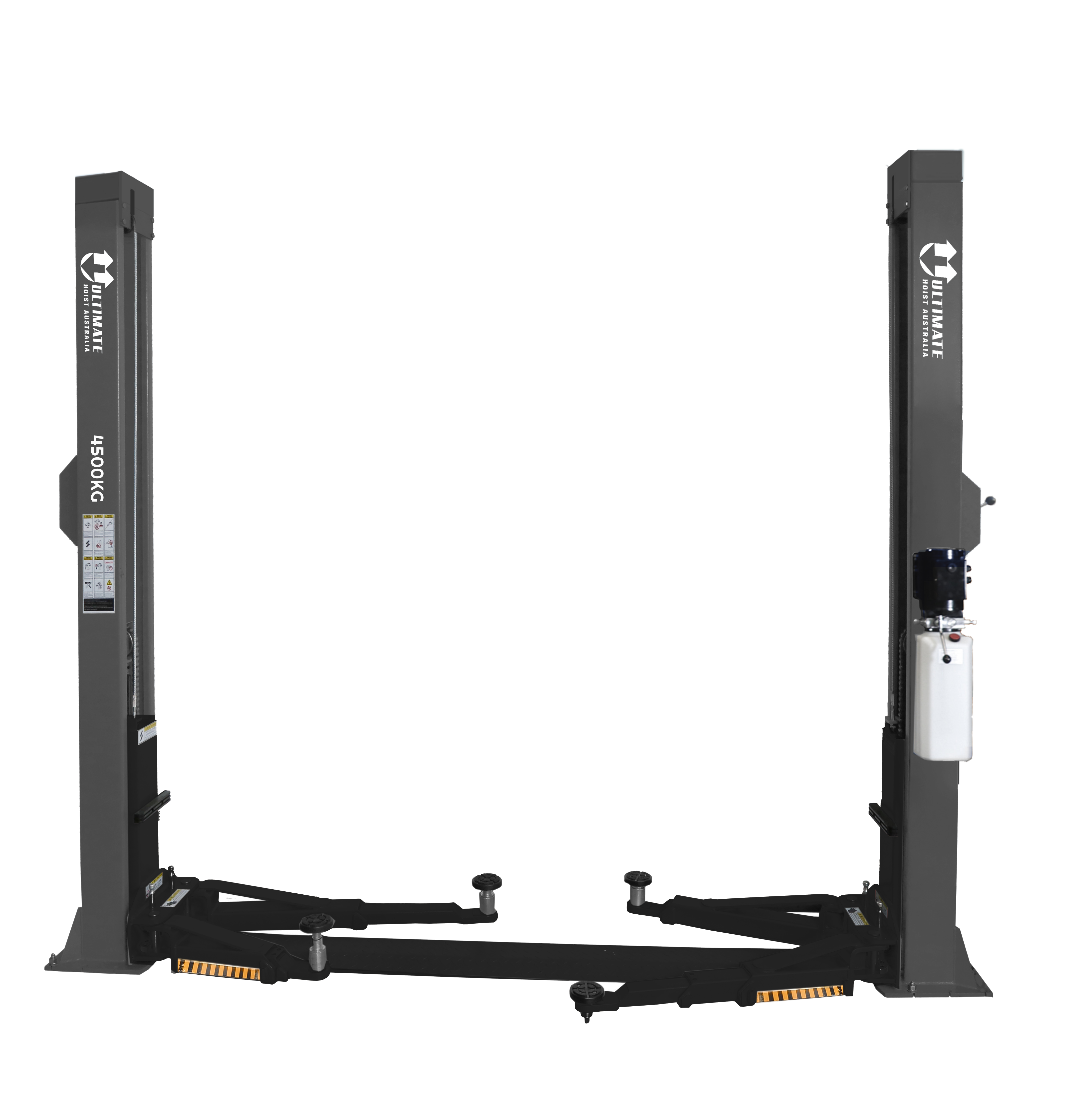

Ultimate UL-245E 4.5T
4.5-tonne clear-floor 2-post car hoist in Perth, WA, WorkSafe design registered, with a 3,000mm drive-through width for 4WDs and trade vans. With an overhead crossbeam and no floor obstruction, the UL-245E leaves the workshop bay floor completely clear for transmission jacks, oil drainers, and tool chests. Reinforced top extension sleeves give two height settings (4,050 mm or 4,200 mm overall), and the arms can be set up asymmetric or symmetric to suit the vehicle. Arms lock automatically when raised, the lock release is single-sided, and an extra-wide top beam carries a shut-off limit switch to protect tall vehicles. Available in 240V (15A) or 415V (20A) models with screw-up lift pads, raisers, and 4WD chassis adaptors included as standard. Stocked at our Maddington warehouse for immediate workshop installation across Perth, regional WA delivery, or nationwide depot freight.
Nationwide Freight to Any Commercial Workshop or Transport Depot
Daily dispatch from Maddington. Same-day Perth metro delivery. Regular road freight circuits to Bunbury, Albany, Geraldton, Kalgoorlie, Karratha, and Port Hedland.
Consolidated linehaul freight to major transport depots across Sydney, Melbourne, Brisbane, Adelaide, Darwin, and Hobart with forklift loading support.
Heavy hoists are packaged in heavy-gauge steel frame crates with high-density rust inhibitor wrapping to guarantee pristine arrival at your workshop.
Specifications & Dimensions
| Lifting Capacity | 4,500kg |
| Overall Height | 4050mm or 4200mm (Dual Height Setting) |
| Lifting Height | 1860mm - 1940mm |
| Pad Height | 110mm - 190mm |
| Overhead Clearance | 3870mm - 4015mm |
| Drive-Through / Inner Width | 3000mm |
| Total Width | 3430mm (3520mm outer baseplate) |
| Arm Reach (Front) | 690mm - 1085mm |
| Arm Reach (Rear) | 985mm - 1500mm |
| Power Supply | 240V (15A) or 415V (20A) |
| Freight Dimensions | 2860 mm (L) × 950 mm (W) × 460 mm (H) (Packaged Freight) |
| Freight Weight | 840kg |
| Minimum Concrete Requirement | 125mm - 150mm Reinforced (25+ MPa) |
| Australian Standard | AS 1418.9 / AS 2550.9 Compliant |
| Warranty Coverage | Commercial Manufacturer Warranty & Local Parts Support |
Workshop Fitment Requirements
To ensure safe operation and compliance with AS 2550.9, confirm that your bay meets the following specifications before hoist delivery:
- Concrete Slab: 125mm - 150mm Reinforced (25+ MPa).
- Ceiling Clearance: Allow minimum 200mm clearance above total hoist height.
- Power Supply: Dedicated circuit breaker installed by licensed electrician.
Key Inclusions & Features
Speak with a Workshop Technician
Unsure if this unit fits your workshop ceiling height or vehicle wheelbase? Call our Maddington technical team for bay layout advice.
