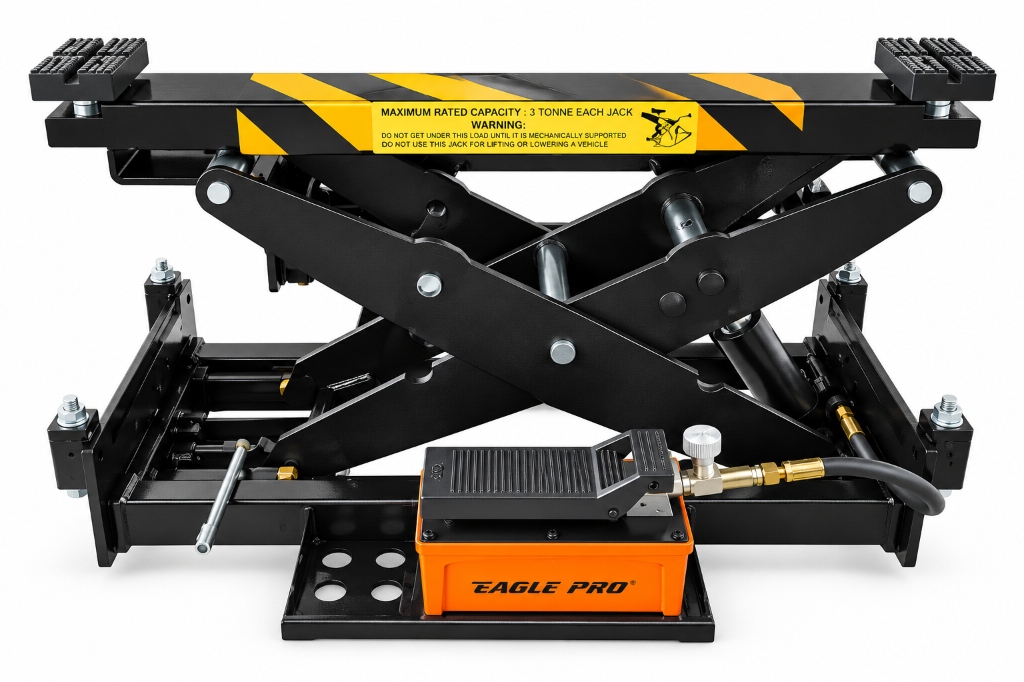

ULTIMATE 3T Air Hydraulic Jacking Beam (UL-JB-3)
The Ultimate 3 Tonne Air Hydraulic Jacking Beam (UL-JB-3) is a heavy-duty commercial scissor lifting bridge engineered for 4-post and scissor vehicle hoists. Delivering 3,000kg capacity with a low 170mm minimum profile and 445mm stroke, it allows fast, secure wheel-free vehicle servicing including brakes, suspension, tyre rotations and wheel alignments. Operated via an Eagle Pro pneumatic foot pump with dual mechanical lock safety.
Nationwide Freight to Any Commercial Workshop or Transport Depot
Daily dispatch from Maddington. Same-day Perth metro delivery. Regular road freight circuits to Bunbury, Albany, Geraldton, Kalgoorlie, Karratha, and Port Hedland.
Consolidated linehaul freight to major transport depots across Sydney, Melbourne, Brisbane, Adelaide, Darwin, and Hobart with forklift loading support.
Heavy hoists are packaged in heavy-gauge steel frame crates with high-density rust inhibitor wrapping to guarantee pristine arrival at your workshop.
Specifications & Dimensions
| Model | UL-JB-3 |
| Lifting Capacity | 3,000kg (3 Tonne) |
| Min. Collapsed Height | 170mm |
| Max. Lifting Height | 445mm (up to 470mm with risers) |
| Chassis Depth | 433mm |
| Roller Track Adjustment | 880mm - 996mm+ |
| Operating Air Pressure | 6 - 8 bar (85 - 115 psi) |

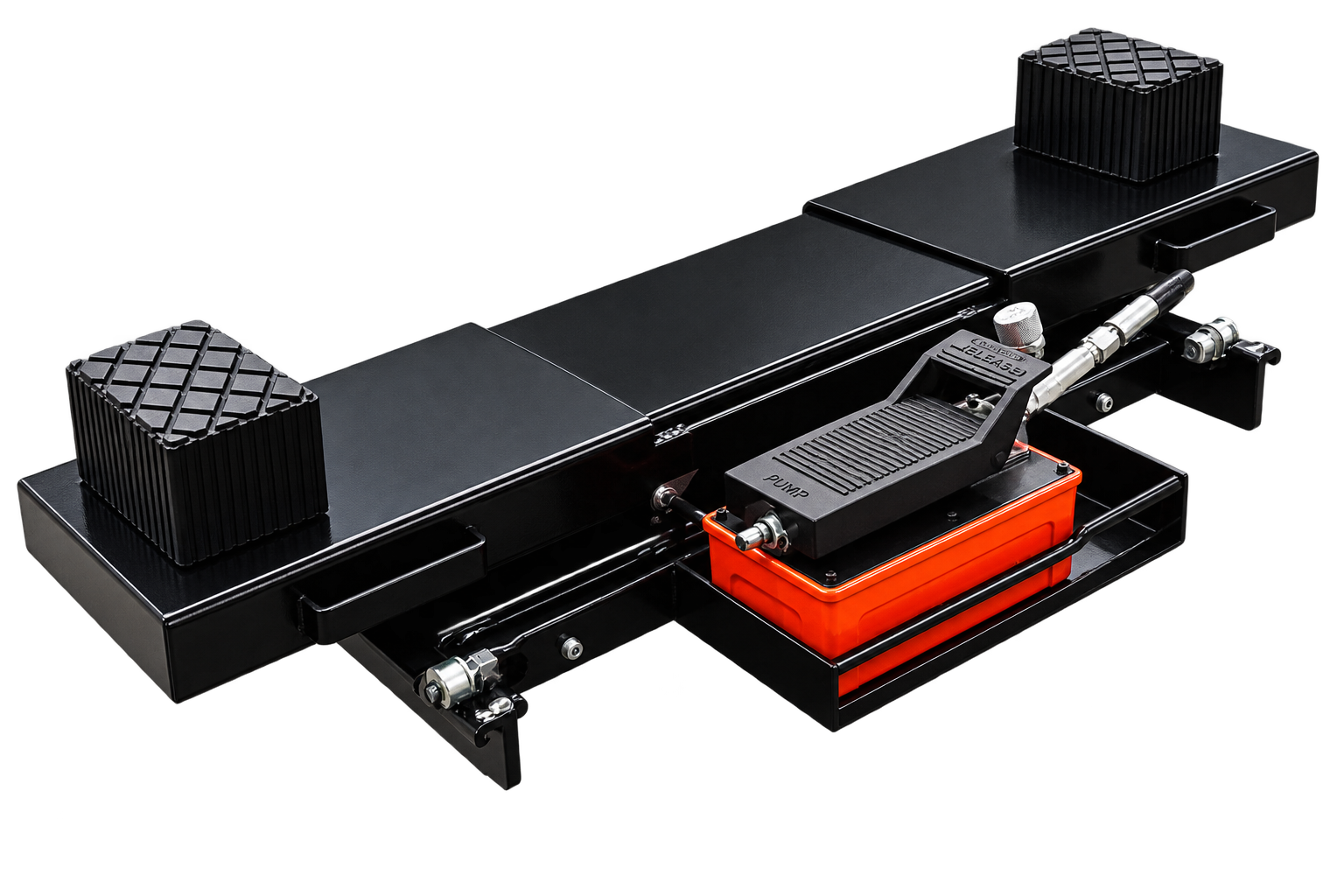

| Pump Type | Eagle Pro Air-Over-Hydraulic Foot Pump |
| Safety Locking | Mechanical multi-position locking pins |
| Australian Standard | AS 1418.9 / AS 2550.9 Compliant |
| Warranty Coverage | Commercial Manufacturer Warranty & Local Parts Support |
Workshop Fitment Requirements
To ensure safe operation and compliance with AS 2550.9, confirm that your bay meets the following specifications before hoist delivery:
- Concrete Slab: Minimum 150mm reinforced concrete (25 - 32 MPa rating).
- Ceiling Clearance: Allow minimum 200mm clearance above total hoist height.
- Power Supply: Dedicated circuit breaker installed by licensed electrician.
Key Inclusions & Features
Speak with a Workshop Technician
Unsure if this unit fits your workshop ceiling height or vehicle wheelbase? Call our Maddington technical team for bay layout advice.
