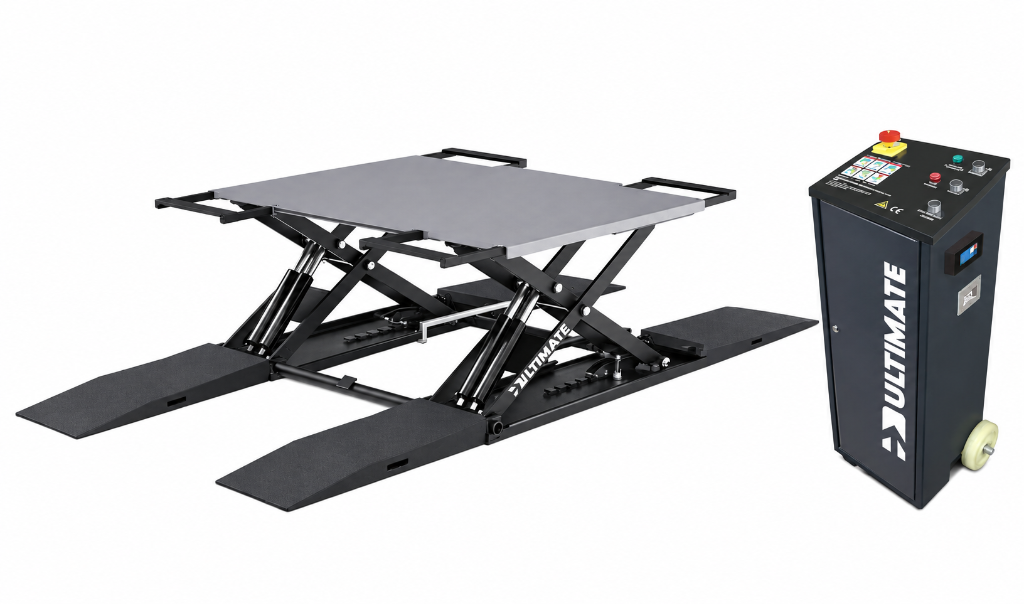

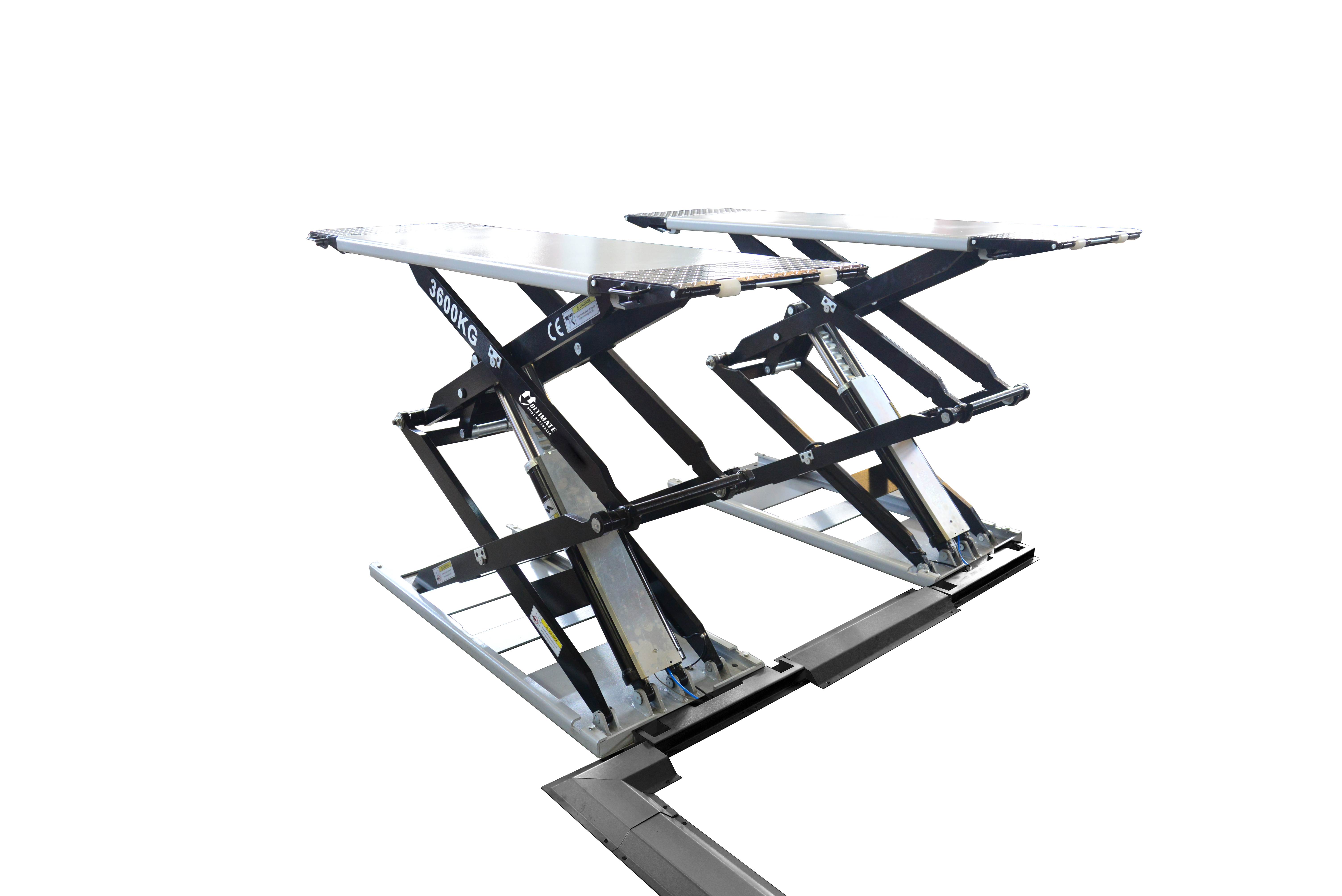

Ultimate UL-36CBL 3.6T Low Profile Scissor Lift
Low-profile 3.6-tonne mid-rise scissor lift in Perth, WA, built for fast tyre changes, brake overhauls, and bodywork in busy trade workshops. The UL-36CBL features ultra-low drive-over clearance, allowing low sports cars and passenger vehicles to drive directly onto the platforms without scraping. Dual pneumatic safety lock disengagement and hydraulic synchronisation ensure rapid, stable lifting up to working height. Supplied with a heavy-duty portable dolly kit allowing one person to move the lift between workshop bays. In stock at our Maddington warehouse with immediate dispatch across WA.
Nationwide Freight to Any Commercial Workshop or Transport Depot
Daily dispatch from Maddington. Same-day Perth metro delivery. Regular road freight circuits to Bunbury, Albany, Geraldton, Kalgoorlie, Karratha, and Port Hedland.
Consolidated linehaul freight to major transport depots across Sydney, Melbourne, Brisbane, Adelaide, Darwin, and Hobart with forklift loading support.
Heavy hoists are packaged in heavy-gauge steel frame crates with high-density rust inhibitor wrapping to guarantee pristine arrival at your workshop.
Specifications & Dimensions
| Lifting Capacity | 3,600kg |
| Lifting Height | 1,880mm |
| Initial Height | 110mm |
| Total Width | 2,080mm |
| Platform Length | 2090mm ( Inc. Ramps ) |
| Power | 240V |
| Air Pressure | 0.4–0.6 MPa |
| Freight Dimensions | L 1720mm W 720mm H 400mm |
| Freight Weight | # |
| Australian Standard | AS 1418.9 / AS 2550.9 Compliant |
| Warranty Coverage | Commercial Manufacturer Warranty & Local Parts Support |
Workshop Fitment Requirements
To ensure safe operation and compliance with AS 2550.9, confirm that your bay meets the following specifications before hoist delivery:
- Concrete Slab: 125mm - 150mm reinforced concrete (25 - 32 MPa rating).
- Ceiling Clearance: Allow minimum 200mm clearance above total hoist height.
- Power Supply: Dedicated circuit breaker installed by licensed electrician.
Key Inclusions & Features
Speak with a Workshop Technician
Unsure if this unit fits your workshop ceiling height or vehicle wheelbase? Call our Maddington technical team for bay layout advice.
