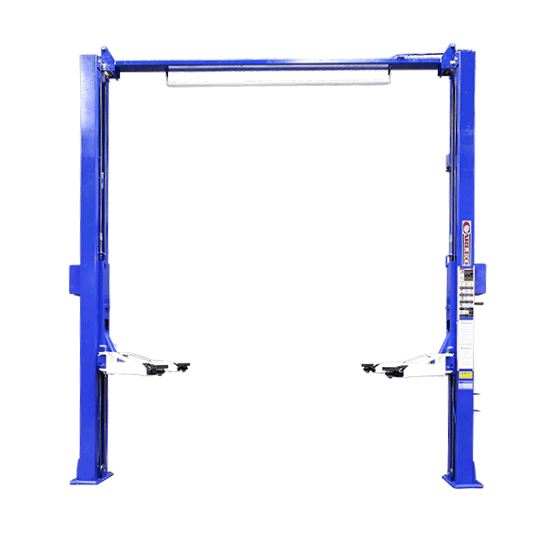

CARLEO SL-303SBW-N3 4.5T
Premium Carleo 4.5-tonne clear-floor 2-post car hoist in Perth, WA, precision manufactured with heavy-duty Japanese steel and WorkSafe registration. The Carleo SL-303SBW-N3 is known across Australian workshops for outstanding structural rigidity and longevity. Features high-grade hydraulic power units, synchronised cable equalization, and symmetric/asymmetric arm configurations for effortless positioning under passenger and commercial vehicles. Certified for commercial fleet operations and annual WorkSafe compliance. Supported by P&M Automotive Equipment with genuine factory parts and local technical support.
Nationwide Freight to Any Commercial Workshop or Transport Depot
Daily dispatch from Maddington. Same-day Perth metro delivery. Regular road freight circuits to Bunbury, Albany, Geraldton, Kalgoorlie, Karratha, and Port Hedland.
Consolidated linehaul freight to major transport depots across Sydney, Melbourne, Brisbane, Adelaide, Darwin, and Hobart with forklift loading support.
Heavy hoists are packaged in heavy-gauge steel frame crates with high-density rust inhibitor wrapping to guarantee pristine arrival at your workshop.
Specifications & Dimensions
| Lifting Capcity | 4,500kg |
| Column Height | 3895mm |
| Overall Width | 3421mm |
| Lifting Height | 1800mm |
| Inside drive thru width | 2644mm |
| Minimum arm clearance | 93.5mm |
| Configuration | Symmetric |
| Inclusions | Lift Pad Extensions |
| Power | 240V Or 415V |
| Freight Dimensions | L 3865mm W 720mm H 460mm |
| Freight Weight | 800kg |
| Australian Standard | AS 1418.9 / AS 2550.9 Compliant |
| Warranty Coverage | Commercial Manufacturer Warranty & Local Parts Support |
Workshop Fitment Requirements
To ensure safe operation and compliance with AS 2550.9, confirm that your bay meets the following specifications before hoist delivery:
- Concrete Slab: 125mm - 150mm reinforced concrete (25 - 32 MPa rating).
- Ceiling Clearance: Allow minimum 200mm clearance above total hoist height.
- Power Supply: Dedicated circuit breaker installed by licensed electrician.
Key Inclusions & Features
Speak with a Workshop Technician
Unsure if this unit fits your workshop ceiling height or vehicle wheelbase? Call our Maddington technical team for bay layout advice.
