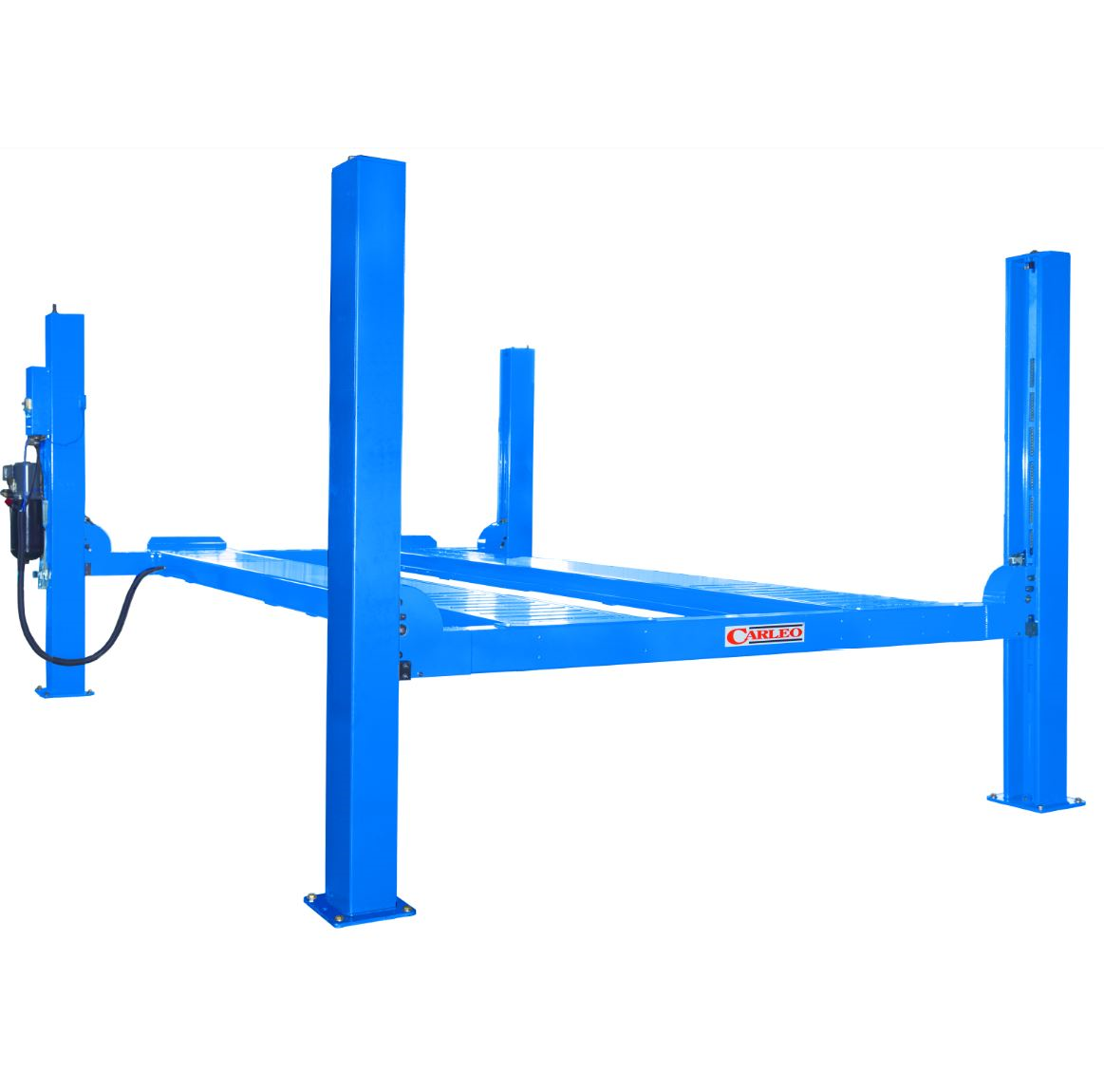

CARLEO SL-640-45 4.5T
Premium Carleo 4.5-tonne 4-post service hoist in Perth, WA, built with Japanese structural steel for heavy commercial trade bays and dealership workshops. The Carleo SL-640-45 provides exceptional platform stability and endurance under continuous daily workshop duty. Wide runways accommodate wide-track passenger vehicles and commercial utes, with non-skid runway surfaces and heavy-duty safety locking ladders on all four corners. Ready to equip with optional air rolling jacks for wheel-free brake and suspension work. Certified to AS 2550.9 standards with full spare parts support from P&M in Maddington.
Nationwide Freight to Any Commercial Workshop or Transport Depot
Daily dispatch from Maddington. Same-day Perth metro delivery. Regular road freight circuits to Bunbury, Albany, Geraldton, Kalgoorlie, Karratha, and Port Hedland.
Consolidated linehaul freight to major transport depots across Sydney, Melbourne, Brisbane, Adelaide, Darwin, and Hobart with forklift loading support.
Heavy hoists are packaged in heavy-gauge steel frame crates with high-density rust inhibitor wrapping to guarantee pristine arrival at your workshop.
Specifications & Dimensions
| Lifting Capacity | 4,500kg |
| Column Height | 2424mm |
| Total Width | 3430mm |
| Drive Through Clearance | 1332mm |
| Platform Length | 5000mm |
| Total Length | 6000mm |
| Power | 240V or 415V |
| Freight Dimensions | 4890mm x 700mm x 920mm |
| Freight Weight | 1500kg |
| Minimum Concrete Requirement | 110mm - 150mm Reinforced (25+ MPa) |
| Australian Standard | AS 1418.9 / AS 2550.9 Compliant |
| Warranty Coverage | Commercial Manufacturer Warranty & Local Parts Support |
Workshop Fitment Requirements
To ensure safe operation and compliance with AS 2550.9, confirm that your bay meets the following specifications before hoist delivery:
- Concrete Slab: 110mm - 150mm Reinforced (25+ MPa).
- Ceiling Clearance: Allow minimum 200mm clearance above total hoist height.
- Power Supply: Dedicated circuit breaker installed by licensed electrician.
Key Inclusions & Features
Speak with a Workshop Technician
Unsure if this unit fits your workshop ceiling height or vehicle wheelbase? Call our Maddington technical team for bay layout advice.
