Home/Equipment/4-Post Hoists/Ultimate 3.5T 4-Post Car Stacking & Parking Hoist
Ultimate Heavy DutyAS 1418.9 Compliant
In Stock WA

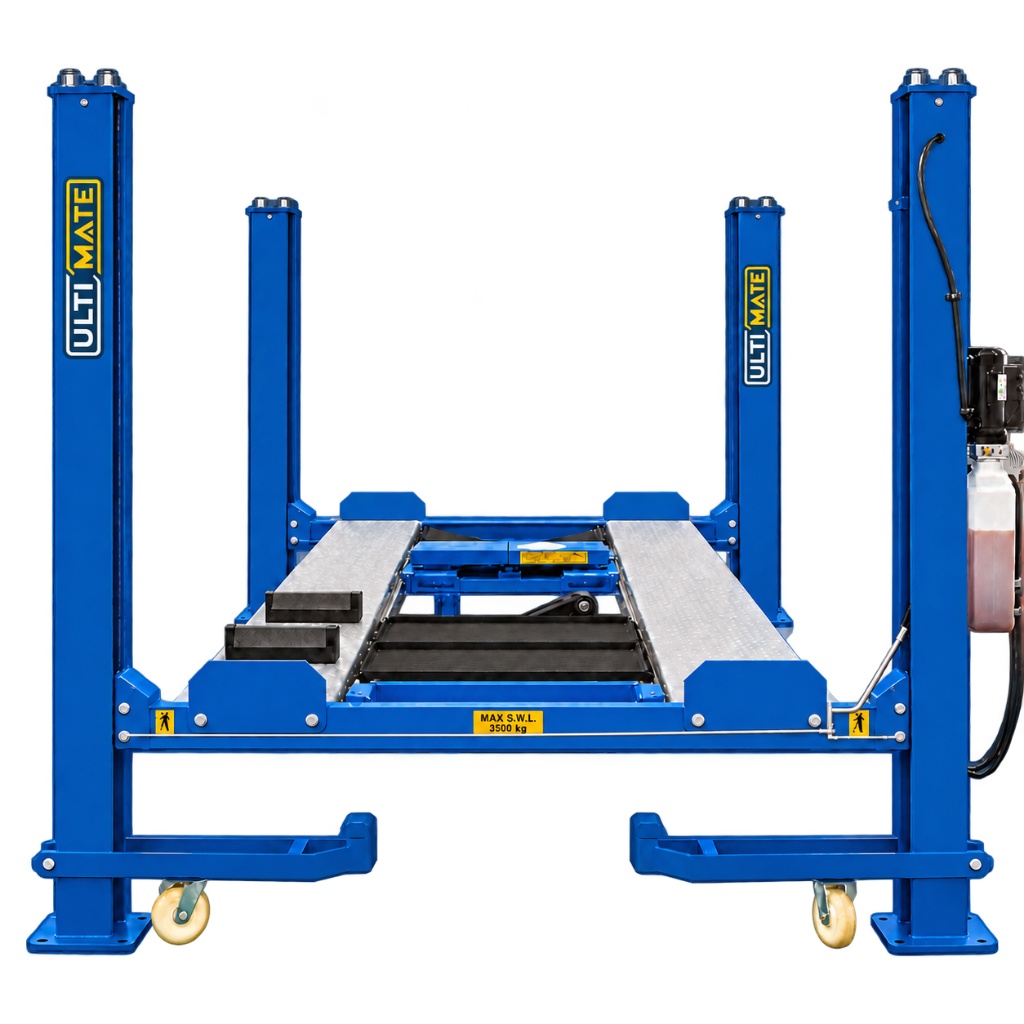

Ultimate 3.5T 4-Post Car Stacking & Parking Hoist
Tap to zoom
Download Official PDF Specifications Brochure
4-Post Hoists•Direct Trade Supply

Ultimate 3.5T 4-Post Car Stacking & Parking Hoist

Commercial Trade Price
$4,850.00 AUD + GST
Ready to ShipDirect Warehouse Stock
Interstate Delivery: Daily dispatch to all AU states & regional hubs
Hubs

3.5-tonne 4-post car stacking and parking hoist in Perth, WA, for storing two vehicles in one bay at home or in the workshop. It lifts 3,500 kg from 130 mm to 1,950 mm, with 1,800 mm of clearance under the platform at the lock height, so a 4WD or sedan can park underneath. The width between columns is 2,350 mm. Each column has a lock ladder, a slack cable device adds protection, and the locks are released manually. Castor wheels, drip trays, a vinyl curtain, a jacking tray and removable drive-on ramps come standard. Runs on 240V single phase. In stock at our Maddington showroom with WA delivery or national freight.

Lifting Capacity3,500kg
Lifting Height130mm – 1950mm
Power Supply240V Single Phase
Call (08) 9209 1044
Capricorn Preferred Supplier
5%
Existing P&M Service Client? You qualify for an exclusive 5% loyalty discount on equipment purchases. Mention your workshop account when inquiring.
Australia-Wide Logistics

Nationwide Freight to Any Commercial Workshop or Transport Depot

Perth & WA Regional

Daily dispatch from Maddington. Same-day Perth metro delivery. Regular road freight circuits to Bunbury, Albany, Geraldton, Kalgoorlie, Karratha, and Port Hedland.

Interstate Capital Depots

Consolidated linehaul freight to major transport depots across Sydney, Melbourne, Brisbane, Adelaide, Darwin, and Hobart with forklift loading support.

Secure Timber Packaging

Heavy hoists are packaged in heavy-gauge steel frame crates with high-density rust inhibitor wrapping to guarantee pristine arrival at your workshop.

Technical Engineering Data

Specifications & Dimensions

ModelUltimate 3.5T Car Stacker
Lifting Capacity3,500kg
Lifting Height130mm – 1950mm
Clearance Under Platform1800mm
Top Lock Height to Platform1910mm
Width Between Columns2350mm
Overall Width2960mm (with motor)
Overall Length4385mm (without ramps)
Gross Weight765kg
Lift Type4-Post Parking / Storage Lift
OperationCable Electro-Hydraulic
Safety SystemMechanical Multi-Position Safety Locks & Slack Cable Device
Standard InclusionsCastor Wheels Kit, Drip Trays, Jacking Tray, Drive-on Ramps
Power Supply240V Single Phase
Australian StandardAS 1418.9 / AS 2550.9 Compliant
Warranty CoverageCommercial Manufacturer Warranty & Local Parts Support

Workshop Fitment Requirements

To ensure safe operation and compliance with AS 2550.9, confirm that your bay meets the following specifications before hoist delivery:

  • Concrete Slab: 125mm - 150mm reinforced concrete (25 - 32 MPa rating).
  • Ceiling Clearance: Allow minimum 200mm clearance above total hoist height.
  • Power Supply: Dedicated circuit breaker installed by licensed electrician.
Design Highlights

Key Inclusions & Features

3,500kg (3.5 Tonne) Safe Working Load Lifting Capacity
Heavy-Duty Castor Wheels Kit included for mobile garage and bay repositioning
1,800mm clearance under the platform to park 4WDs, SUVs and sedans beneath
Polyethylene Drip Trays included to protect lower vehicle from fluid drips
Steel jacking tray included
Removable drive-on ramps for smooth loading of sports and low-clearance vehicles
Mechanical lock ladder in every column with manual release
Slack cable safety device for automatic instant lock engagement
Smooth and reliable cable electro-hydraulic operation
Optional Jacking Beams and additional drip trays available
Suits workshops and home garages
Need Sizing Guidance?

Speak with a Workshop Technician

Unsure if this unit fits your workshop ceiling height or vehicle wheelbase? Call our Maddington technical team for bay layout advice.

(08) 9209 1044
Buyer Guidance

Frequently Asked Questions

For Perth metropolitan workshops, we offer same-day collection or priority 24-hour delivery from our Maddington warehouse. For regional WA (Bunbury, Kalgoorlie, Pilbara) and interstate destinations (Sydney, Melbourne, Brisbane, Adelaide), freight transit typically takes 2 to 6 business days.
