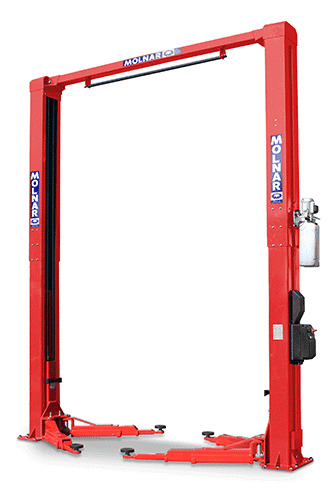

MOLNAR SM270 7T
When your workshop handles everything from passenger cars to light commercials and vans, the SM270 is the hoist that handles it all. Universal 7 tonne capacity, symmetrical 3-stage arms front and rear, double telescopic arm length — built by Molnar as part of the global Stenhøj Group. Available with three-phase or optional single-phase motor. Installed by P&M Automotive Equipment across WA.
Nationwide Freight to Any Commercial Workshop or Transport Depot
Daily dispatch from Maddington. Same-day Perth metro delivery. Regular road freight circuits to Bunbury, Albany, Geraldton, Kalgoorlie, Karratha, and Port Hedland.
Consolidated linehaul freight to major transport depots across Sydney, Melbourne, Brisbane, Adelaide, Darwin, and Hobart with forklift loading support.
Heavy hoists are packaged in heavy-gauge steel frame crates with high-density rust inhibitor wrapping to guarantee pristine arrival at your workshop.
Specifications & Dimensions
| Lifting Capacity | 7,000kg |
| Lifting Height | 1885mm |
| Total Height Including Hoist | Universal symmetrical with overhead bar |
| Arms | Symmetrical 3-stage front and rear — double telescopic arm length |
| Max Lifting Height | 1,885mm |
| Min Lifting Time | 65 seconds |
| Warranty | 3 years |
| Australian Standard | AS 1418.9 / AS 2550.9 Compliant |
| Warranty Coverage | Commercial Manufacturer Warranty & Local Parts Support |
Workshop Fitment Requirements
To ensure safe operation and compliance with AS 2550.9, confirm that your bay meets the following specifications before hoist delivery:
- Concrete Slab: Minimum 150mm reinforced concrete (25 - 32 MPa rating).
- Ceiling Clearance: Allow minimum 200mm clearance above total hoist height.
- Power Supply: Dedicated circuit breaker installed by licensed electrician.
Key Inclusions & Features
Speak with a Workshop Technician
Unsure if this unit fits your workshop ceiling height or vehicle wheelbase? Call our Maddington technical team for bay layout advice.
