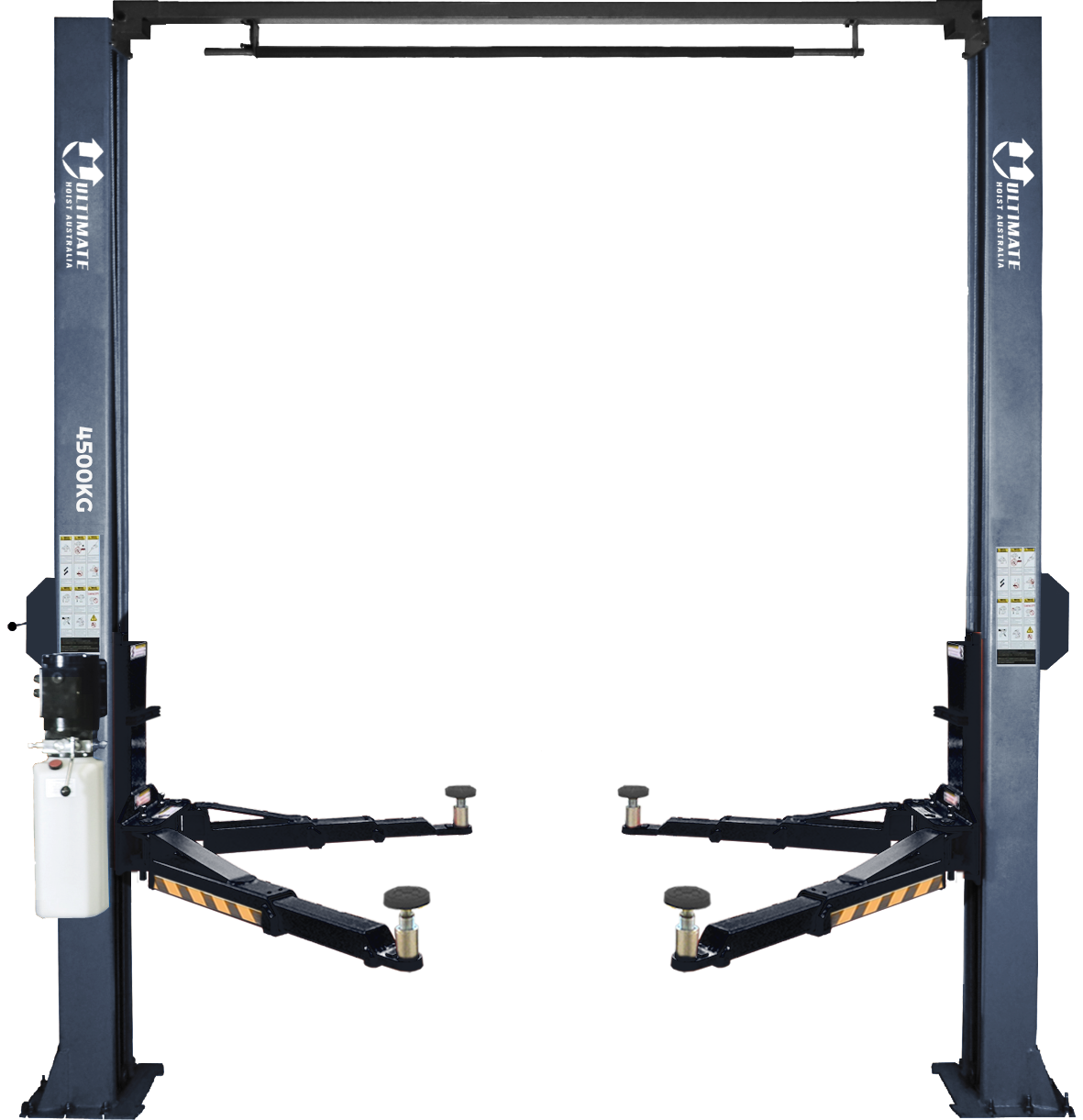

ULTIMATE UL-245L 4.5T
Heavy-duty 4.5-tonne clear-floor 2-post vehicle hoist in Perth, WA, built with long-reach arms to service long-wheelbase commercial vans and light trucks. The UL-245L provides extended arm reach and extra drive-through clearance for commercial fleet maintenance, tradesman utes, and extended wheelbase vans. Features dual direct-drive hydraulic cylinders, an overhead padded shut-off limiter, and automatic arm locking mechanisms. Fully compliant with Australian WorkSafe standards and ready for statutory annual inspections. Backed by P&M with fast delivery, installation, and spare parts support across Western Australia.
Nationwide Freight to Any Commercial Workshop or Transport Depot
Daily dispatch from Maddington. Same-day Perth metro delivery. Regular road freight circuits to Bunbury, Albany, Geraldton, Kalgoorlie, Karratha, and Port Hedland.
Consolidated linehaul freight to major transport depots across Sydney, Melbourne, Brisbane, Adelaide, Darwin, and Hobart with forklift loading support.
Heavy hoists are packaged in heavy-gauge steel frame crates with high-density rust inhibitor wrapping to guarantee pristine arrival at your workshop.
Specifications & Dimensions
| Lifting Capacity | 4,500kg |
| Lifting Height | 1850mm / 1990mm |
| Total Height | 3900mm |
| Total Width | 3440mm |
| Inner Width | 2860mm |
| Power | 240V or 415V |
| Shipping Dimensions | 3850mm x 480mm x 720mm |
| Shipping Weight | 660kg |
| Australian Standard | AS 1418.9 / AS 2550.9 Compliant |
| Warranty Coverage | Commercial Manufacturer Warranty & Local Parts Support |
Workshop Fitment Requirements
To ensure safe operation and compliance with AS 2550.9, confirm that your bay meets the following specifications before hoist delivery:
- Concrete Slab: 125mm - 150mm reinforced concrete (25 - 32 MPa rating).
- Ceiling Clearance: Allow minimum 200mm clearance above total hoist height.
- Power Supply: Dedicated circuit breaker installed by licensed electrician.
Key Inclusions & Features
Speak with a Workshop Technician
Unsure if this unit fits your workshop ceiling height or vehicle wheelbase? Call our Maddington technical team for bay layout advice.
