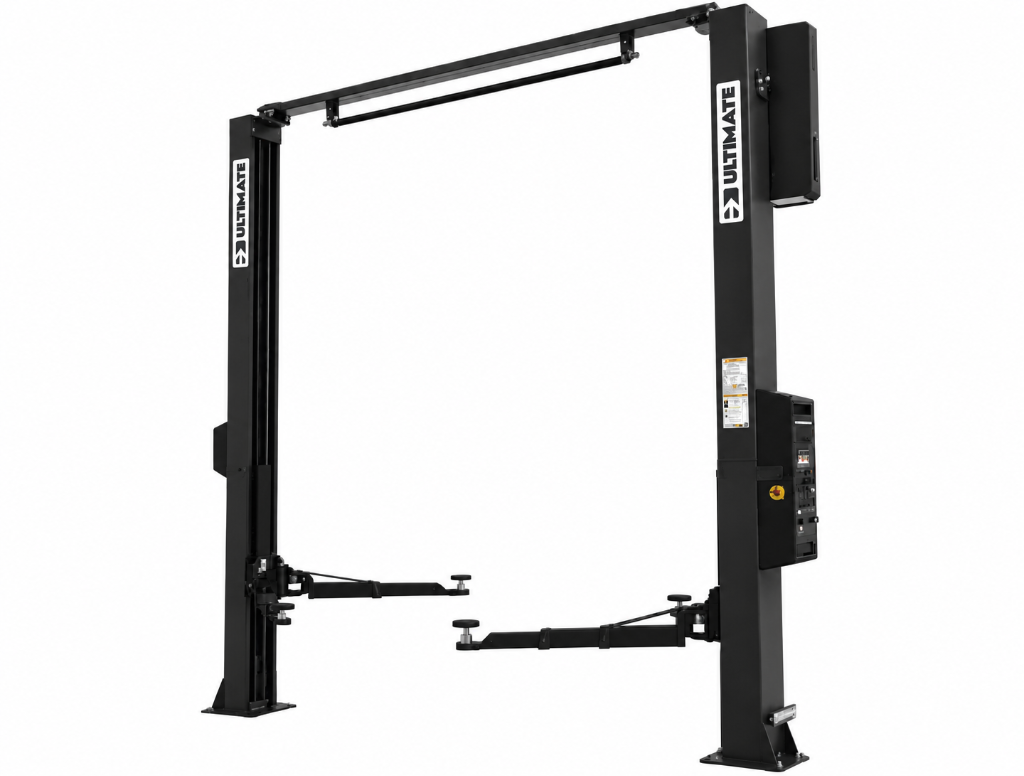

Ultimate UL-245LE 4.5T
Commercial 4.5-tonne 2-post clear-floor car hoist for WA workshops, WorkSafe AS 2550.9 compliant with dual-height settings and heavy-duty arm carriages. The UL-245LE combines clear-floor bay efficiency with versatile column height adjustment to suit diverse workshop ceiling configurations. Three-stage lifting arms allow quick positioning under low-clearance vehicles as well as heavy trade utes with service bodies. Features single-side safety lock disengagement and precision hydraulic valving for controlled descent. Stocked in Maddington with complete installation service or depot collection.
Nationwide Freight to Any Commercial Workshop or Transport Depot
Daily dispatch from Maddington. Same-day Perth metro delivery. Regular road freight circuits to Bunbury, Albany, Geraldton, Kalgoorlie, Karratha, and Port Hedland.
Consolidated linehaul freight to major transport depots across Sydney, Melbourne, Brisbane, Adelaide, Darwin, and Hobart with forklift loading support.
Heavy hoists are packaged in heavy-gauge steel frame crates with high-density rust inhibitor wrapping to guarantee pristine arrival at your workshop.
Specifications & Dimensions
| Lifting Capacity | 4,500kg |
| Lifting Height | 1,850mm / 1,990mm |
| Total Height | 3,900mm |
| Total Width | 3,440mm |
| Inner Width | 2,860mm |
| Power | 240V or 415V |
| Freight Dimensions | 3850mm x 480mm x 720mm |
| Freight Weight | 660kg |
| Australian Standard | AS 1418.9 / AS 2550.9 Compliant |
| Warranty Coverage | Commercial Manufacturer Warranty & Local Parts Support |
Workshop Fitment Requirements
To ensure safe operation and compliance with AS 2550.9, confirm that your bay meets the following specifications before hoist delivery:
- Concrete Slab: 125mm - 150mm reinforced concrete (25 - 32 MPa rating).
- Ceiling Clearance: Allow minimum 200mm clearance above total hoist height.
- Power Supply: Dedicated circuit breaker installed by licensed electrician.
Key Inclusions & Features
Speak with a Workshop Technician
Unsure if this unit fits your workshop ceiling height or vehicle wheelbase? Call our Maddington technical team for bay layout advice.
