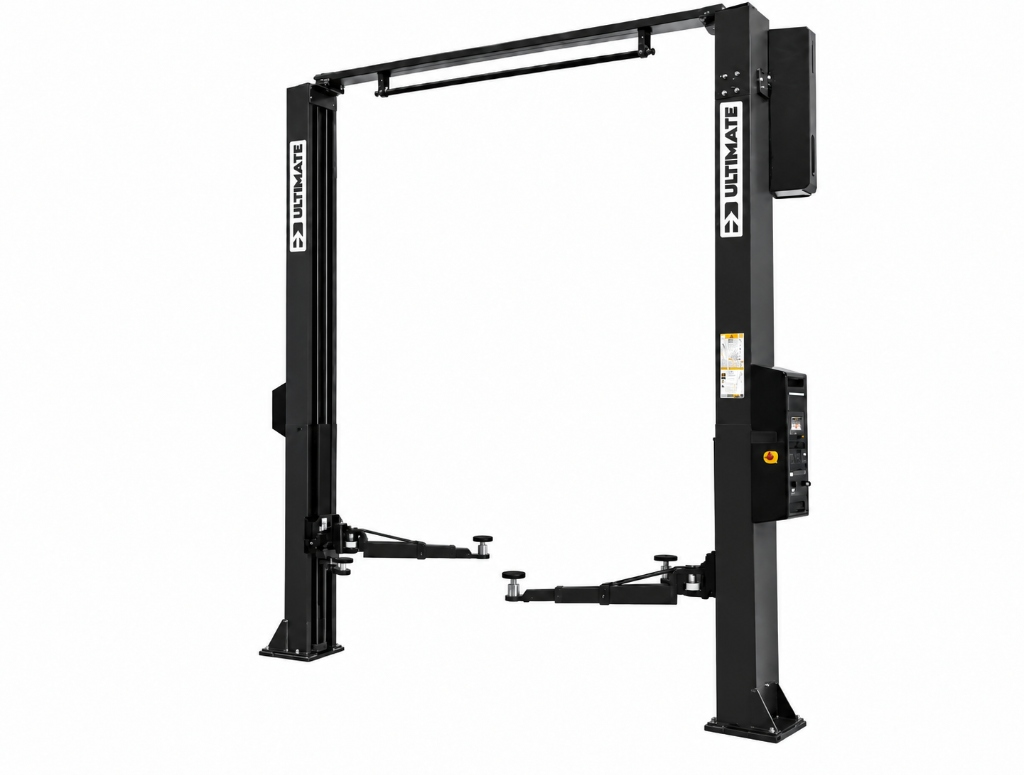

Ultimate UL-255LE 5.5T
Heavy commercial 5.5-tonne clear-floor 2-post vehicle hoist in Perth, WA, built for medium trucks, commercial vans, and heavy mining support vehicles. With a 5,500 kg safe working load, the UL-255LE bridges the gap between standard automotive hoists and light commercial truck lifts. Massive column structures and reinforced arm carriages safely support heavy dual-rear-wheel utes, service trucks, and armoured fleet vehicles. Equipped with heavy-duty drop-in raisers, mechanical safety locks, and dual hydraulic rams. Certified to WorkSafe AS 2550.9 requirements with full installation services available across Perth and WA regional centres.
Nationwide Freight to Any Commercial Workshop or Transport Depot
Daily dispatch from Maddington. Same-day Perth metro delivery. Regular road freight circuits to Bunbury, Albany, Geraldton, Kalgoorlie, Karratha, and Port Hedland.
Consolidated linehaul freight to major transport depots across Sydney, Melbourne, Brisbane, Adelaide, Darwin, and Hobart with forklift loading support.
Heavy hoists are packaged in heavy-gauge steel frame crates with high-density rust inhibitor wrapping to guarantee pristine arrival at your workshop.
Specifications & Dimensions
| Lifting Capacity | 5,500kg |
| Lifting Height | 1,850mm / 1,990mm |
| Total Height | 4,600mm |
| Total Width | 3,580mm |
| Inner Width | 3,000mm |
| Power | 240V or 415V |
| Freight Dimensions | 3850mm x 480mm x 720mm |
| Freight Weight | 820kg |
| Australian Standard | AS 1418.9 / AS 2550.9 Compliant |
| Warranty Coverage | Commercial Manufacturer Warranty & Local Parts Support |
Workshop Fitment Requirements
To ensure safe operation and compliance with AS 2550.9, confirm that your bay meets the following specifications before hoist delivery:
- Concrete Slab: 125mm - 150mm reinforced concrete (25 - 32 MPa rating).
- Ceiling Clearance: Allow minimum 200mm clearance above total hoist height.
- Power Supply: Dedicated circuit breaker installed by licensed electrician.
Key Inclusions & Features
Speak with a Workshop Technician
Unsure if this unit fits your workshop ceiling height or vehicle wheelbase? Call our Maddington technical team for bay layout advice.
