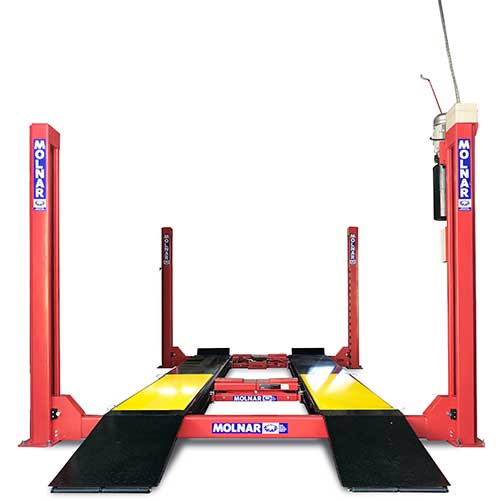

MOLNAR SM440-A 4 POST WHEEL ALIGNMENT HOIST 4T
Commercial Molnar 4.0-tonne 4-post wheel alignment hoist in Perth, WA, featuring precision turntable pockets and rear slip plates for accurate alignments. Designed specifically for mechanical workshops and alignment specialists, the SM440-A features precision-level runways that support accurate 3D and optical alignment measuring. Accommodates standard passenger vehicles through to trade utes and commercial vans. Includes integrated secondary jacking beam rails for wheel-free inspections. WorkSafe compliant with full local warranty and installation support from P&M.
Nationwide Freight to Any Commercial Workshop or Transport Depot
Daily dispatch from Maddington. Same-day Perth metro delivery. Regular road freight circuits to Bunbury, Albany, Geraldton, Kalgoorlie, Karratha, and Port Hedland.
Consolidated linehaul freight to major transport depots across Sydney, Melbourne, Brisbane, Adelaide, Darwin, and Hobart with forklift loading support.
Heavy hoists are packaged in heavy-gauge steel frame crates with high-density rust inhibitor wrapping to guarantee pristine arrival at your workshop.
Specifications & Dimensions
| Lifting Capacity | 4,000kg |
| Lifting Height | 1,750mm |
| Working Height | 1,750mm |
| Lifting Time | 50 seconds |
| Lowering Time | 30 seconds |
| Pump Motor | 2.2kW, 3-phase 415V 50Hz |
| Total Length | 5,595mm |
| Australian Standard | AS 1418.9 / AS 2550.9 Compliant |
| Warranty Coverage | Commercial Manufacturer Warranty & Local Parts Support |
Workshop Fitment Requirements
To ensure safe operation and compliance with AS 2550.9, confirm that your bay meets the following specifications before hoist delivery:
- Concrete Slab: 125mm - 150mm reinforced concrete (25 - 32 MPa rating).
- Ceiling Clearance: Allow minimum 200mm clearance above total hoist height.
- Power Supply: Dedicated circuit breaker installed by licensed electrician.
Key Inclusions & Features
Speak with a Workshop Technician
Unsure if this unit fits your workshop ceiling height or vehicle wheelbase? Call our Maddington technical team for bay layout advice.
