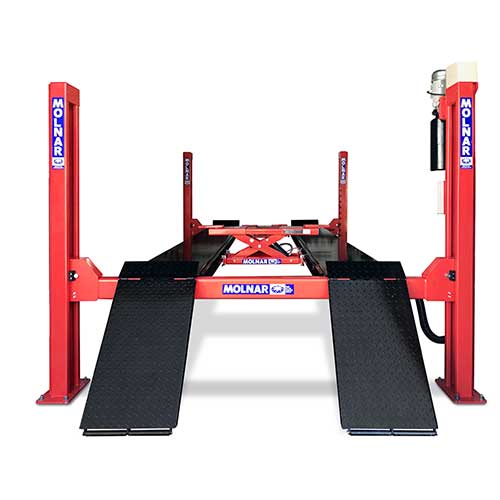

MOLNAR SM440-S 4 POST SERVICE HOIST 4T
Proven Molnar 4.0-tonne 4-post service hoist in Perth, WA, built for everyday mechanical workshop servicing, underbody repairs, and fleet maintenance. The SM440-S is a commercial workshop standard across Western Australia, delivering 4,000 kg capacity with dependable hydraulic operation. Wide drive-on platforms accommodate passenger cars, SUVs, and commercial trade utes with complete safety. Built with mechanical safety locks in each column, heavy-duty cable sheaves, and low-profile drive-on ramps. Stocked and supported with genuine Molnar parts from our Maddington facility.
Nationwide Freight to Any Commercial Workshop or Transport Depot
Daily dispatch from Maddington. Same-day Perth metro delivery. Regular road freight circuits to Bunbury, Albany, Geraldton, Kalgoorlie, Karratha, and Port Hedland.
Consolidated linehaul freight to major transport depots across Sydney, Melbourne, Brisbane, Adelaide, Darwin, and Hobart with forklift loading support.
Heavy hoists are packaged in heavy-gauge steel frame crates with high-density rust inhibitor wrapping to guarantee pristine arrival at your workshop.
Specifications & Dimensions
| Lifting Capacity | 4,000kg |
| Max Lifting Height | 1,750mm |
| Lifting Time | 50 seconds |
| Lowering Time | 30 seconds |
| Motor | 2.2kW, 3-phase 415V 50Hz (optional single-phase) |
| Total Length | 5,595mm |
| Australian Standard | AS 1418.9 / AS 2550.9 Compliant |
| Warranty Coverage | Commercial Manufacturer Warranty & Local Parts Support |
Workshop Fitment Requirements
To ensure safe operation and compliance with AS 2550.9, confirm that your bay meets the following specifications before hoist delivery:
- Concrete Slab: 125mm - 150mm reinforced concrete (25 - 32 MPa rating).
- Ceiling Clearance: Allow minimum 200mm clearance above total hoist height.
- Power Supply: Dedicated circuit breaker installed by licensed electrician.
Key Inclusions & Features
Speak with a Workshop Technician
Unsure if this unit fits your workshop ceiling height or vehicle wheelbase? Call our Maddington technical team for bay layout advice.
