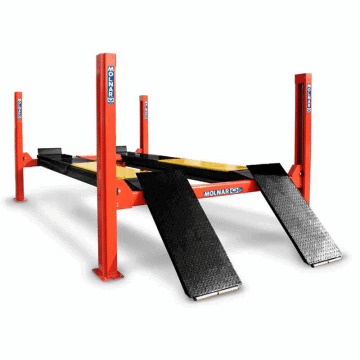

MOLNAR SM450-A 5T WHEEL ALIGNMENT 4 POST HOIST
High-capacity Molnar 5.0-tonne 4-post wheel alignment hoist in Perth, WA, engineered for large 4WDs, commercial fleet vans, and heavy workshop alignments. The SM450-A provides a robust 5,000 kg capacity with extra-long runways, making it the ideal alignment hoist for workshops handling heavy trade fleets and modified 4x4s. Features adjustable turntable locations, full-floating rear slip plates, and mechanical safety locking pins. Fully certified to Australian Standard AS 2550.9. Available with professional positioning, concrete chemical anchoring, and statutory inspection sign-off across WA.
Nationwide Freight to Any Commercial Workshop or Transport Depot
Daily dispatch from Maddington. Same-day Perth metro delivery. Regular road freight circuits to Bunbury, Albany, Geraldton, Kalgoorlie, Karratha, and Port Hedland.
Consolidated linehaul freight to major transport depots across Sydney, Melbourne, Brisbane, Adelaide, Darwin, and Hobart with forklift loading support.
Heavy hoists are packaged in heavy-gauge steel frame crates with high-density rust inhibitor wrapping to guarantee pristine arrival at your workshop.
Specifications & Dimensions
| Lifting Capacity | 5,000kg (5 tonne) |
| Power System | Electro-hydraulic |
| Motor Options | 3-phase, optional single-phase |
| Warranty | 3 years |
| Australian Standard | AS 1418.9 / AS 2550.9 Compliant |
| Warranty Coverage | Commercial Manufacturer Warranty & Local Parts Support |
Workshop Fitment Requirements
To ensure safe operation and compliance with AS 2550.9, confirm that your bay meets the following specifications before hoist delivery:
- Concrete Slab: 125mm - 150mm reinforced concrete (25 - 32 MPa rating).
- Ceiling Clearance: Allow minimum 200mm clearance above total hoist height.
- Power Supply: Dedicated circuit breaker installed by licensed electrician.
Key Inclusions & Features
Speak with a Workshop Technician
Unsure if this unit fits your workshop ceiling height or vehicle wheelbase? Call our Maddington technical team for bay layout advice.
