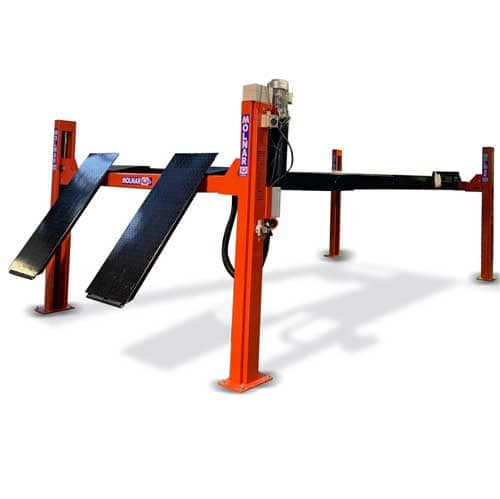

MOLNAR SM460-A 4 POST WHEEL ALIGNMENT HOIST 6T

Click to enlargeTap to zoom

Download Official PDF Specifications Brochure

4-Post Hoists•Direct Trade Supply

MOLNAR SM460-A 4 POST WHEEL ALIGNMENT HOIST 6T

Name: MOLNAR SM460-A 4 POST WHEEL ALIGNMENT HOIST 6T
Brand: P&M Automotive Equipment
Rating: 4.9 (48 reviews)

Commercial Trade Price

Price on Request / Call for Quote

Ready to ShipDirect Warehouse Stock

Interstate Delivery: Daily dispatch to all AU states & regional hubs

Hubs

Precision Molnar 6.0-tonne 4-post wheel alignment hoist in Perth, WA, built with integrated turntable recesses and rear slip plates for heavy commercial fleets. The Molnar SM460-A combines heavy-duty 6,000 kg lifting power with high-accuracy wheel alignment runways. Level platform engineering ensures precise 3D and optical wheel alignment results on commercial vans, transport trucks, and large 4WDs. Equipped with built-in utility tracks for air jacking beams. Fully WorkSafe compliant across Western Australia, backed by P&M's experienced service team.

Lifting Capacity6,000kg

Lifting Height1,750mm

Power SupplySingle or 3-Phase Available

Call (08) 9209 1044

Existing P&M Service Client? You qualify for an exclusive 5% loyalty discount on equipment purchases. Mention your workshop account when inquiring.

Australia-Wide Logistics

Nationwide Freight to Any Commercial Workshop or Transport Depot

Perth & WA Regional

Daily dispatch from Maddington. Same-day Perth metro delivery. Regular road freight circuits to Bunbury, Albany, Geraldton, Kalgoorlie, Karratha, and Port Hedland.

Interstate Capital Depots

Consolidated linehaul freight to major transport depots across Sydney, Melbourne, Brisbane, Adelaide, Darwin, and Hobart with forklift loading support.

Secure Timber Packaging

Heavy hoists are packaged in heavy-gauge steel frame crates with high-density rust inhibitor wrapping to guarantee pristine arrival at your workshop.

Direct Freight Depots & Delivery Corridors:View All 14 Australian Freight Hubs

Sydney (NSW)Melbourne (VIC)Brisbane (QLD)Perth (WA)Adelaide (SA)Gold Coast (QLD)Newcastle (NSW)Canberra (ACT)Sunshine Coast (QLD)Geelong (VIC)Wollongong (NSW)Townsville & Cairns (QLD)Darwin (NT)Hobart (TAS)

Technical Engineering Data

Specifications & Dimensions

Lifting Capacity	6,000kg
Lifting Height	1,750mm
Platform Length	5,445mm
Power System	Electro-hydraulic, 3-phase (optional single-phase)
Warranty	3 years
Australian Standard	AS 1418.9 / AS 2550.9 Compliant
Warranty Coverage	Commercial Manufacturer Warranty & Local Parts Support

Workshop Fitment Requirements

To ensure safe operation and compliance with AS 2550.9, confirm that your bay meets the following specifications before hoist delivery:

Concrete Slab: 125mm - 150mm reinforced concrete (25 - 32 MPa rating).
Ceiling Clearance: Allow minimum 200mm clearance above total hoist height.
Power Supply: Dedicated circuit breaker installed by licensed electrician.

Design Highlights

Key Inclusions & Features

Integrated double slip plates for wheel alignment work

Large front turntable recesses and rear slip plates

Long run-up ramps

Electro-hydraulic system with push-button control

Emergency stop functionality

Eccentric brake system

Suitable for passenger cars to light commercial vehicles

3-phase motor with optional single-phase available

Need Sizing Guidance?

Speak with a Workshop Technician

Unsure if this unit fits your workshop ceiling height or vehicle wheelbase? Call our Maddington technical team for bay layout advice.

(08) 9209 1044

Buyer Guidance

Frequently Asked Questions

For Perth metropolitan workshops, we offer same-day collection or priority 24-hour delivery from our Maddington warehouse. For regional WA (Bunbury, Kalgoorlie, Pilbara) and interstate destinations (Sydney, Melbourne, Brisbane, Adelaide), freight transit typically takes 2 to 6 business days.
