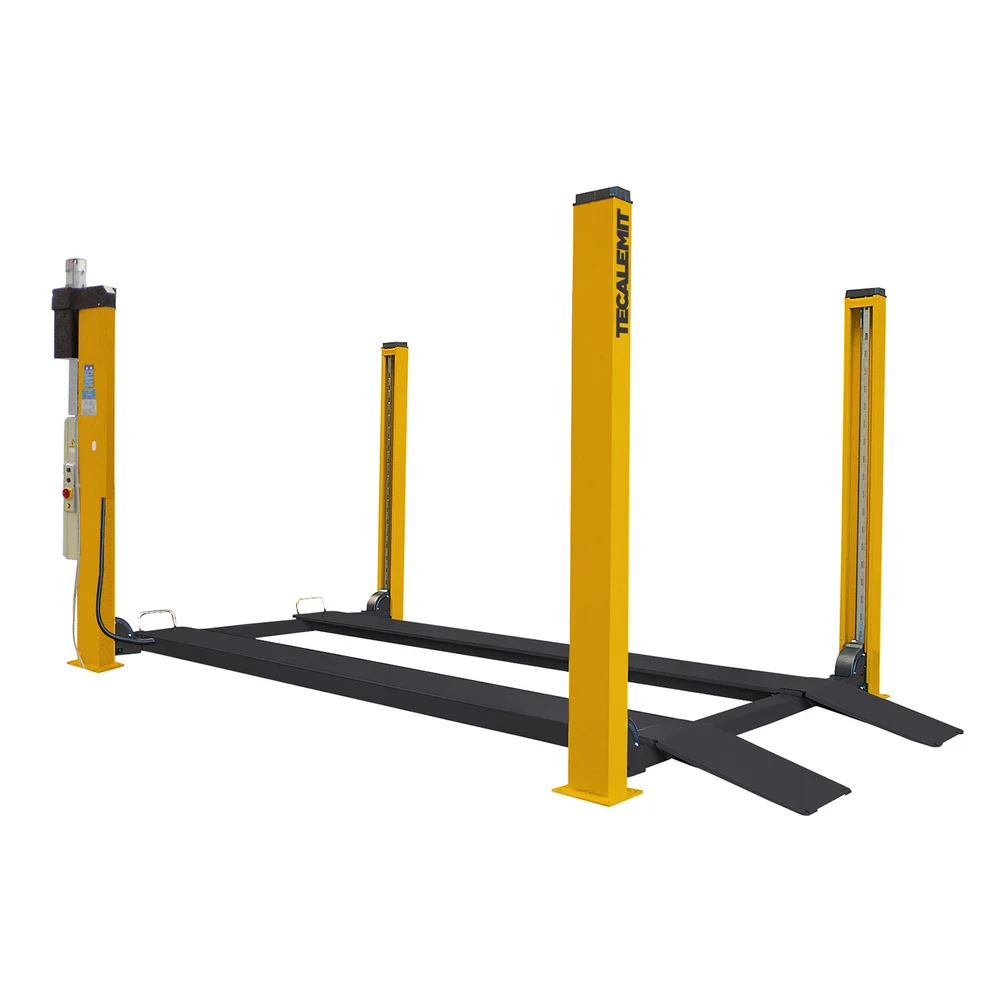

TECALEMIT TECG4004L 4T 4 POST LARGE HOIST
The TECG4004L is the larger format version of the Tecalemit 4T 4-post range with longer platforms, wider inside column width, and drive-on ramps suited to low-profile vehicles. Australian-designed and built.
Nationwide Freight to Any Commercial Workshop or Transport Depot
Daily dispatch from Maddington. Same-day Perth metro delivery. Regular road freight circuits to Bunbury, Albany, Geraldton, Kalgoorlie, Karratha, and Port Hedland.
Consolidated linehaul freight to major transport depots across Sydney, Melbourne, Brisbane, Adelaide, Darwin, and Hobart with forklift loading support.
Heavy hoists are packaged in heavy-gauge steel frame crates with high-density rust inhibitor wrapping to guarantee pristine arrival at your workshop.
Specifications & Dimensions
| Lifting Capacity | 4,000kg |
| Maximum Lift Height | 1,750mm |
| Overall Dimensions | 6,140mm long × 3,310mm wide × 2,230mm high |
| Lowered Platform Height | 190mm |
| Inside Column Width | 2,850mm |
| Hoist Track | 4,800mm × 650mm |
| Vehicle Track | 1,400mm minimum, 1,720mm maximum |
| Power | 3-phase 2.2kW |
| Lift Time | 50 seconds |
| Australian Standard | AS 1418.9 / AS 2550.9 Compliant |
| Warranty Coverage | Commercial Manufacturer Warranty & Local Parts Support |
Workshop Fitment Requirements
To ensure safe operation and compliance with AS 2550.9, confirm that your bay meets the following specifications before hoist delivery:
- Concrete Slab: Minimum 150mm reinforced concrete (25 - 32 MPa rating).
- Ceiling Clearance: Allow minimum 200mm clearance above total hoist height.
- Power Supply: Dedicated circuit breaker installed by licensed electrician.
Key Inclusions & Features
Speak with a Workshop Technician
Unsure if this unit fits your workshop ceiling height or vehicle wheelbase? Call our Maddington technical team for bay layout advice.
